ZB 60B
HandBag Bottom Gluing Machine
Characteristics

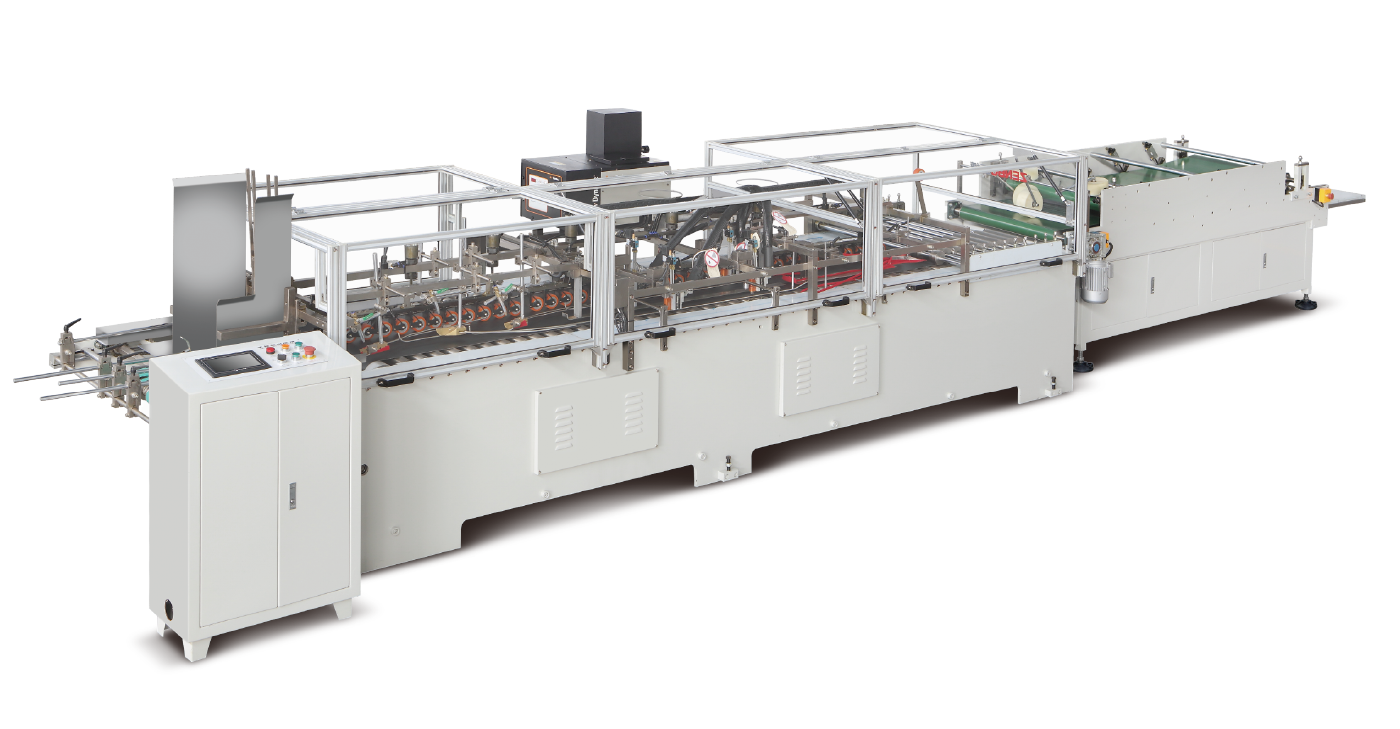

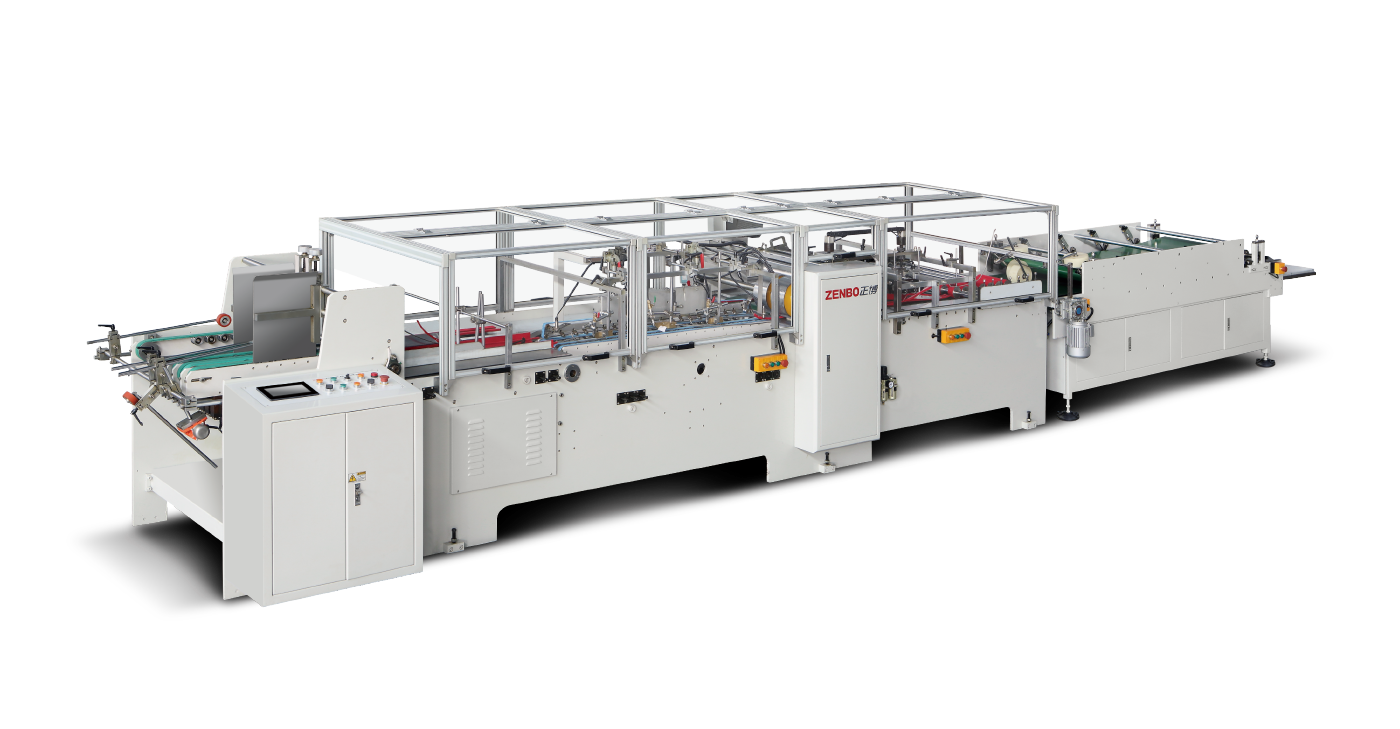

ZB60B Handbag Bottom gluing Machine. The bag bottom will be pasted by water soluble glue after being positioned. This machine has features automatic compaction and delivery of bag output one by one.With the frequency control of motor speed, the user can adjust the glue thickness and position according to requirements. Its high precision, fast speed and easy operation significantly improve your bag quality, shorten delivery time and expand operational capacity.
Product Video
Technical parameter

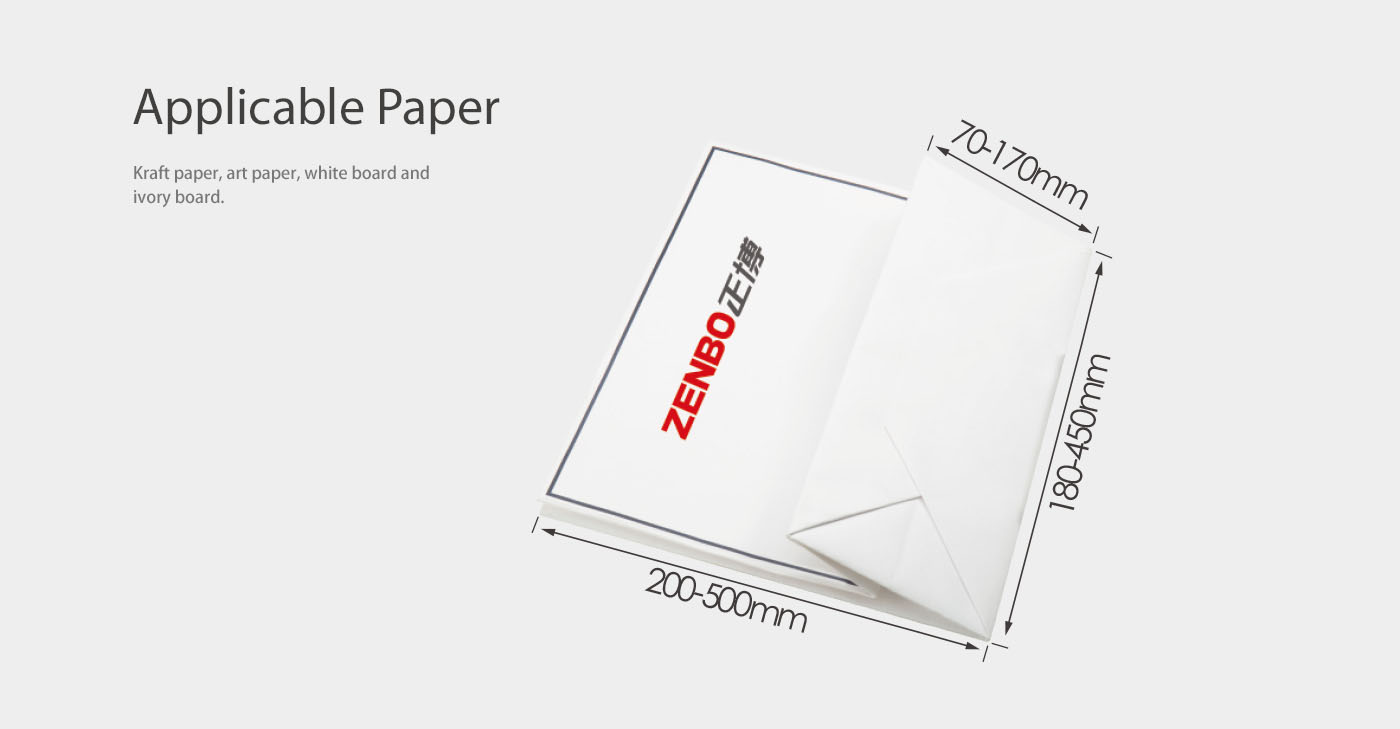

| Bottom Width | 70-170mm |
| Bag Width | 180-450mm |
| Bag Height | 200-500mm |
| Sheet Weight | 120-250g/m2 |
| Total Power | 3kw |
| Machine Size | 8140x1600x1380mm |
| Speed | 50-90 bags/min |
| Total Weight | 2T |
| Glue Type | Water soluble cold gule |

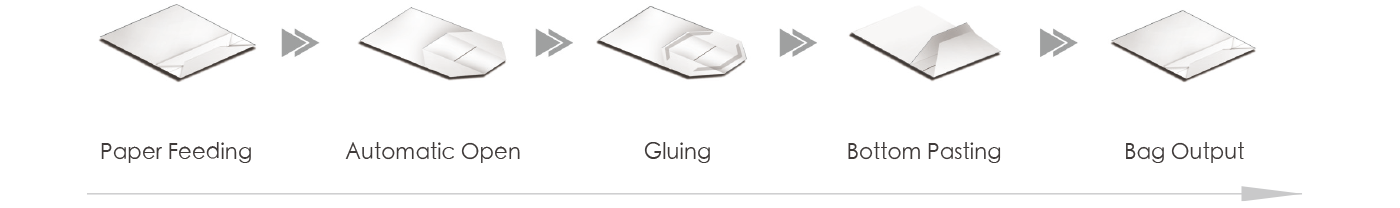

Process flow
